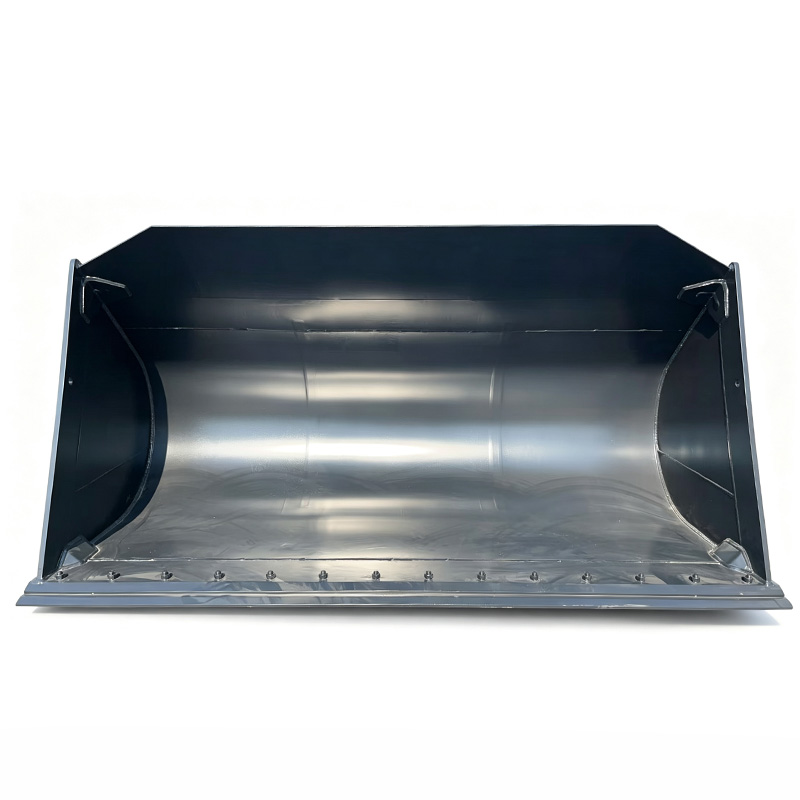

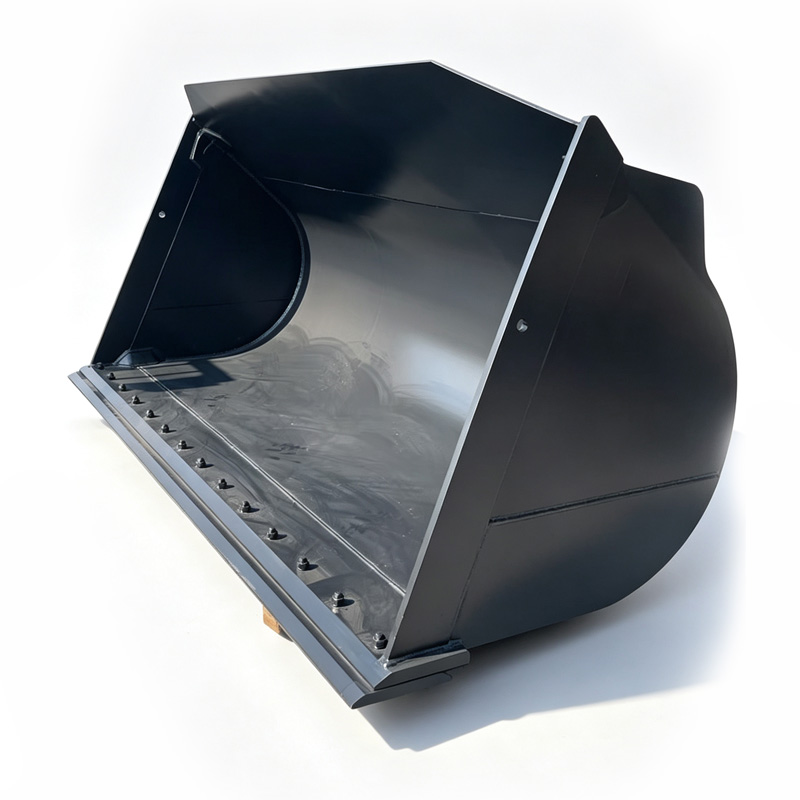

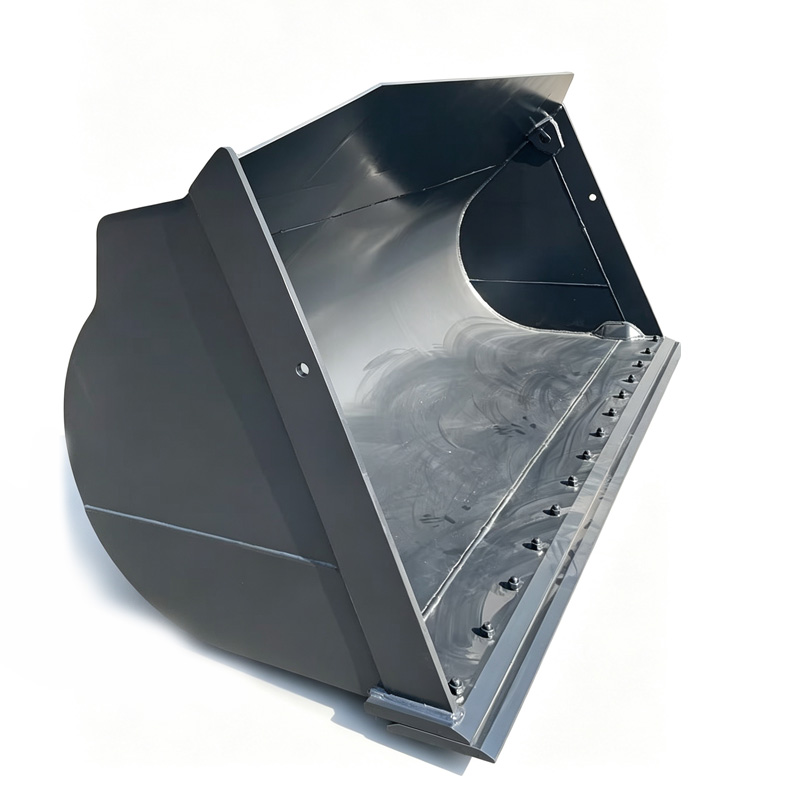

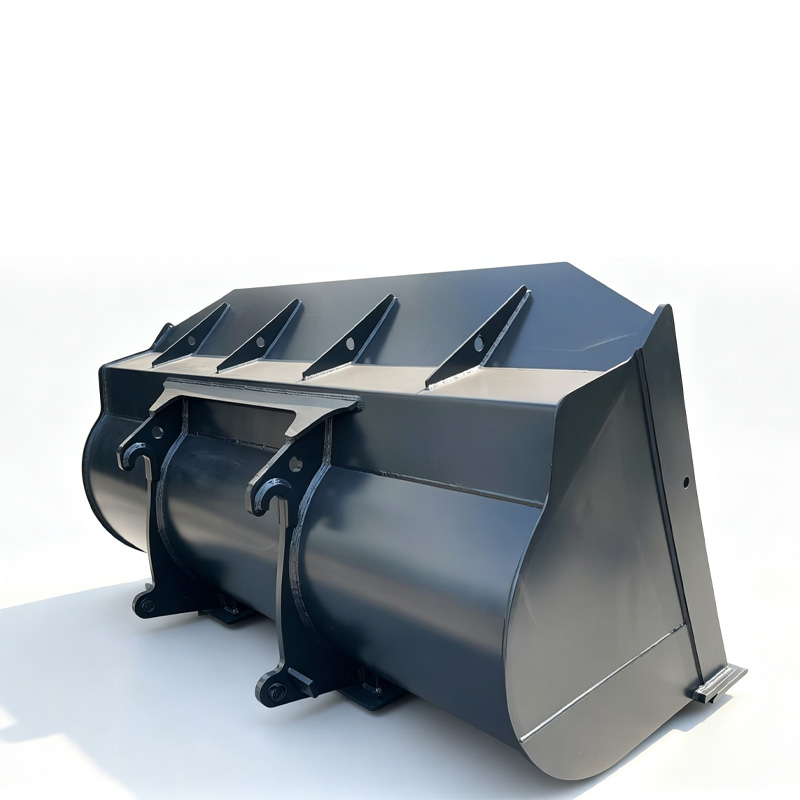

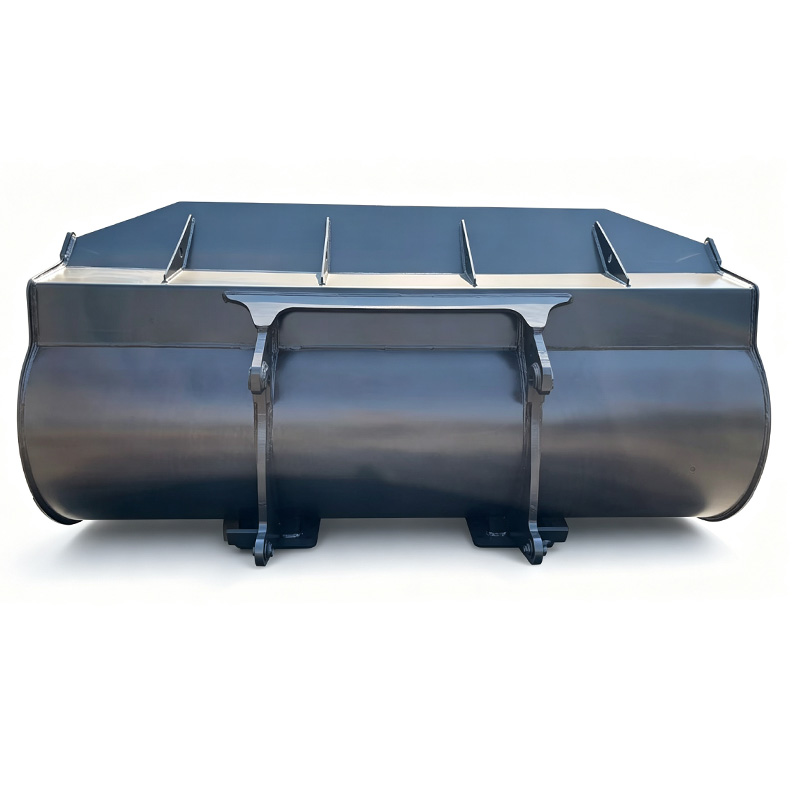

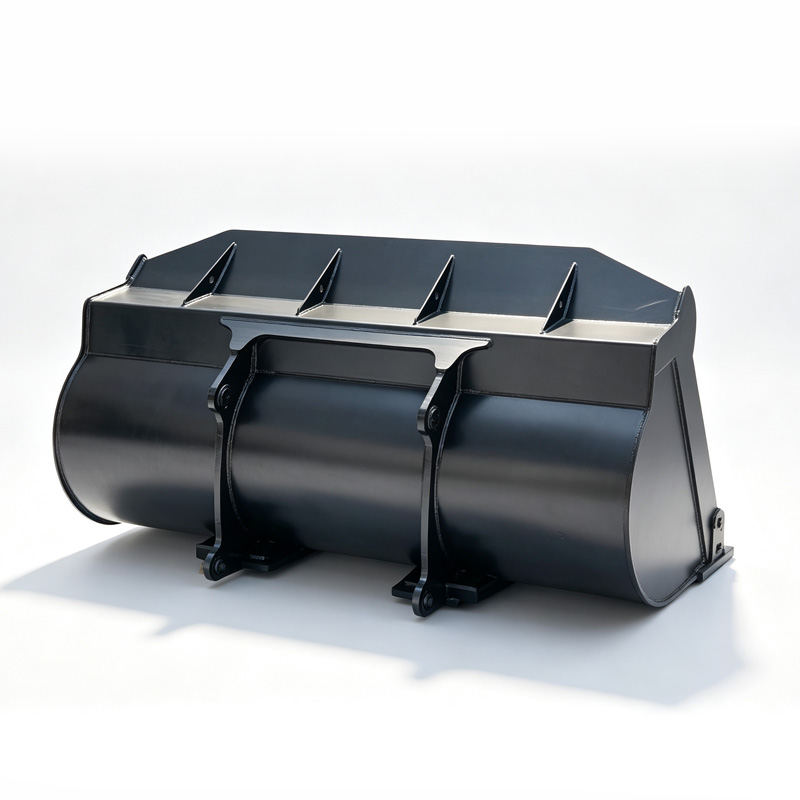

DL280 Wheel Loader General Purpose (GP) Bucket | 3.5 CBM Capacity

The DL280 3.5CBM GP Bucket is a heavy-duty, factory-direct replacement attachment specially engineered for Develon DL280 wheel loaders. Upgraded from the standard 2.8CBM original bucket, this 3.5 cubic meter large-capacity bucket features a full 2750mm working width and optimized bucket geometry to deliver higher volume handling capacity. Manufactured with Q355 high-strength steel main body and NM400 wear-resistant steel wearing parts, it guarantees stable structure, reliable loading performance and long service life under harsh construction, quarry and earthmoving conditions. Compatible with both pin-on and quick hitch mounting systems, this 1120KG standard GP bucket provides perfect fitting, easy installation and versatile bulk material handling for sand, gravel, soil and crushed stone.

Parameter

Model ： DL280

Rated Capacity ： 3.5 CBM

Working Design ： General Purpose Loader Bucket

Bucket Weight(kg) ： 1100

Overall Dimension (W×D×H) ： 290*135*155CM

Steel grade ： HB500+NM450/400+Q460+Q355

Color ： Custom color available

Customization ： Bucket volume, width, paint color, logo, mounting structure customization

Product Name ： Aggregate, Grain, Crops, Sawdust, Compost, Light Bulk Materials

Custom Volume Range ： 1.5‑10 CBM

Service Support ： Light weight reduces loader fuel consumption, high loading efficiency

Compatible Quick‑Change System ： ISO / Fusion / JRB / EDF

Collection

Prev: DL320 Wheel Loader Heavy Duty Bucket | 4.0CBM Capacity | 1950kgs

Next: 3.8CBM ISO Quick Change Wheel Loader Bucket for 5 Ton Loader, Fit Volvo L120 & JCB457 Wheel Loader Attachment

Detail

This is a custom upgraded 3.5CBM general purpose bucket exclusively designed for Develon DL280 wheel loader, exceeding the original standard 2.8CBM factory bucket capacity. Manufactured with full high-strength wear-resistant steel, this GP bucket features precise dimensional matching, perfect compatibility with DL280 loader hydraulic and mounting systems. It is ideal for high-volume loading and handling of sand, gravel, soil, crushed stone and bulk materials, widely used in construction, quarrying, road engineering and earthwork projects. The optimized bucket structure improves filling efficiency by 15% compared with standard buckets, effectively improving construction productivity.

Exact Technical Parameters (Full Data)

Rated Heaped Capacity: 3.5 CBM (ISO 7546 Standard, 4.57 Cubic Yard)
Bucket Overall Width: 2900mm
Bucket Depth: 1350mm
Bucket Height: 155mm
Net Weight: 1100 KG
Main Body Steel Plate: Q355 High-strength Structural Steel
Wear Plate & Cutting Edge: NM400 Wear-resistant Steel
Fill Factor: 110% Standard Filling Rate
Mounting Method: Standard Pin-on + Quick Coupler Dual Compatibility
Applicable Machine: Develon DL280 Wheel Loader (Full Series)
Optional Accessories: Bolt-on bucket teeth, side cutters, bottom wear protection plate
Welding Process: Full Penetration Automatic Welding, Stress Relief Treatment

Key Performance Features

Upgraded 3.5CBM Large Capacity: Larger than original factory 2.8CBM bucket, greatly improve single loading volume and construction efficiency, suitable for large-scale bulk material operation.
Super Wear Resistance: The cutting edge and bottom wear plate adopt NM400 wear-resistant steel, with 2 times longer service life than ordinary steel buckets, reducing frequent replacement cost.
Precision Dimension Matching: 2750mm standard width, perfectly fit DL280 loader arm and hydraulic stroke, no modification required, plug-and-use.
Reinforced Structure: Thickened side plates and integrated reinforcing ribs, effectively resist impact and extrusion during heavy-load operation, not easy to deform and crack.
Dual Installation Mode: Support traditional pin-on fixed installation and quick hitch rapid replacement, adapt to different working scene switching, save replacement time.

Application Scenarios

Suitable for bulk material loading and stockpiling in construction sites, quarries, mines, road maintenance projects, landfill sites and farm bulk grain/soil handling. The 3.5CBM large-capacity design is more suitable for high-efficiency, large-volume engineering operations than standard buckets.

Compatibility & Customization

100% compatible with all Develon DL280 wheel loader models. We support customized width, capacity, tooth type and wear-resistant accessories according to customer working conditions. All products pass strict quality inspection and factory testing, with stable quality and reliable after-sales service.
