Heavy Duty Wheel Loader Pallet Fork for Komatsu WA500 Construction Machinery

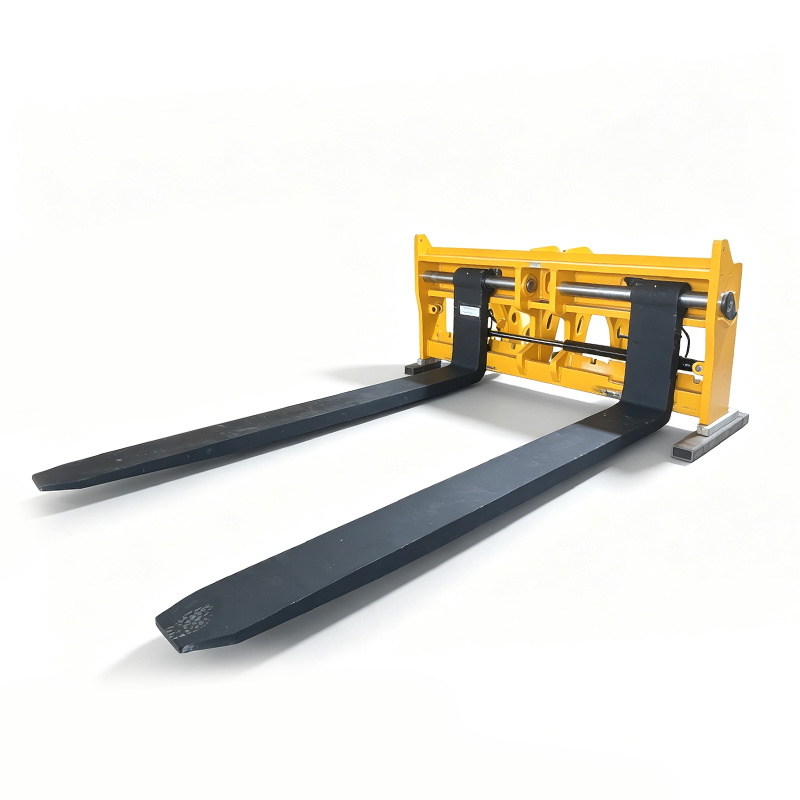

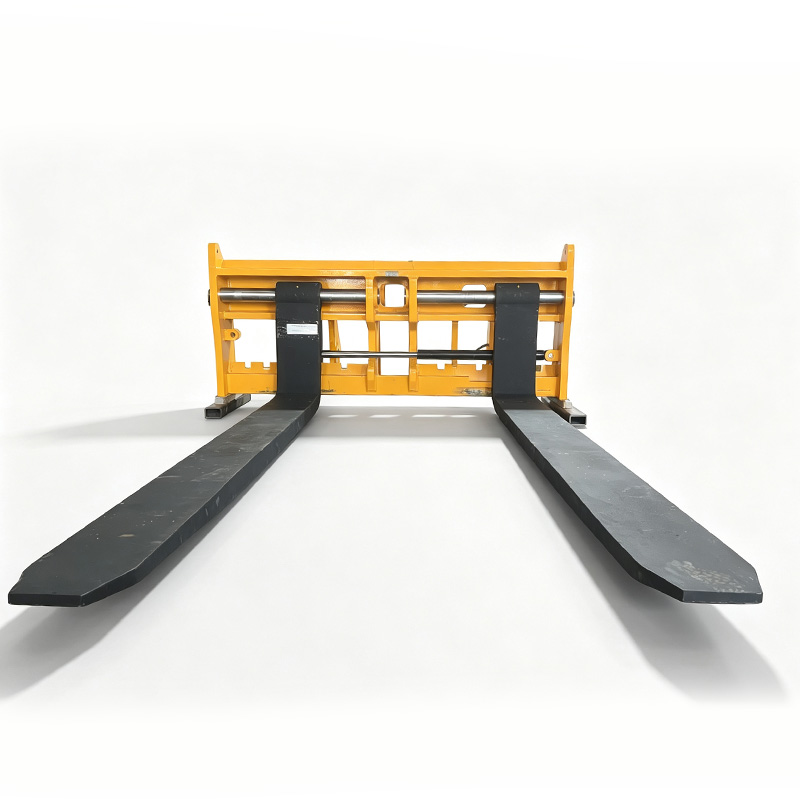

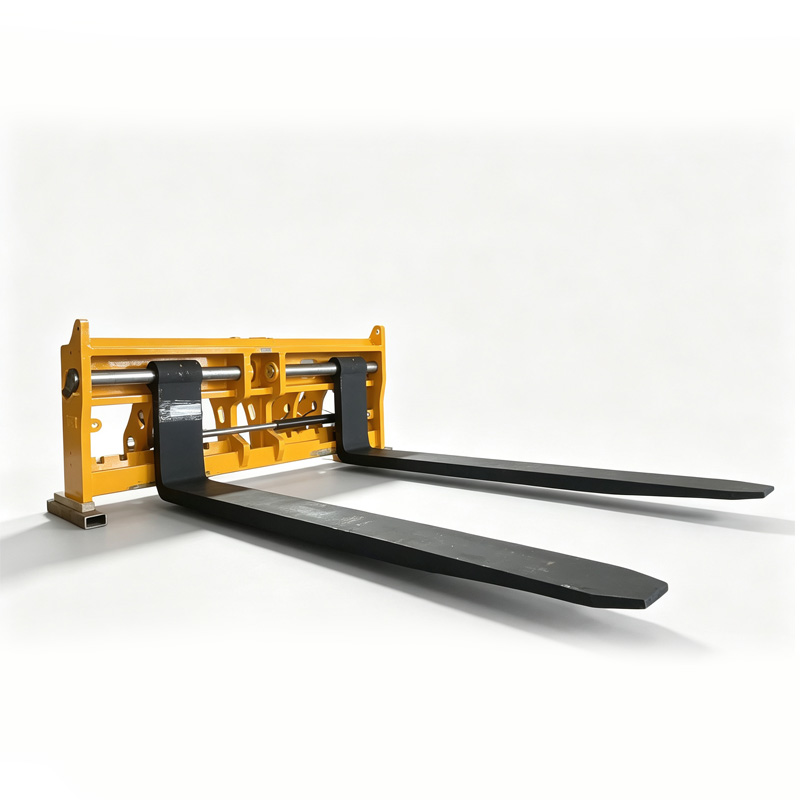

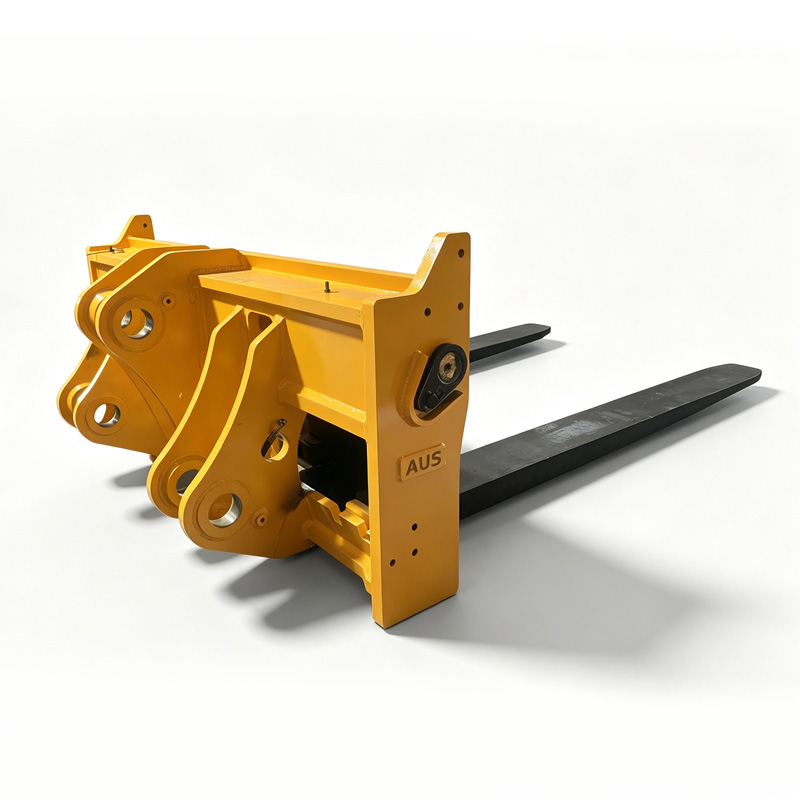

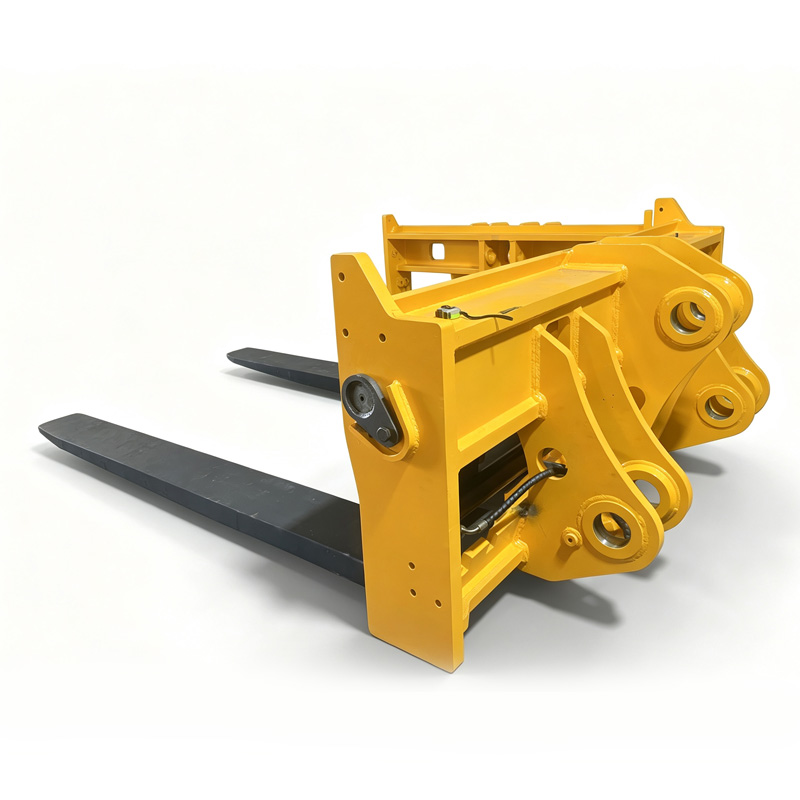

This 20 ton hydraulic adjustable pallet fork is a heavy-duty wheel loader attachment specially built for Komatsu WA500-6, WA500-7 and WA500-8 wheel loaders. It features standard dimensions of 350×255×174cm and a total weight of 3500kg, delivering excellent load-bearing performance and structural stability for long-term heavy-cycle operation.

Manufactured with one-piece forged steel and full reinforced welding, this WA500 pallet fork effectively avoids deformation and cracking under harsh working conditions. The in-cab hydraulic tine adjustment design greatly improves operating efficiency and site safety. Multiple quick change systems including Caterpillar_ISO, Caterpillar_Fusion, EDF and JRB are optional to match different equipment requirements.

Parameter

Applicable Machine ： 20-ton class wheel loader

Steel grade ： Q355 / NM400 / NM500 / Hardox wear‑resistant steel

Product Name ： Wheel Loader Pallet Fork Attachment

Overall Dimension ： 350×255×174 cm

Net Weight ： 3500kg

Compatible Quick‑Change System ： ISO / Fusion / JRB / EDF

Collection

Prev: Loader Attachment Rake Bucket Stick Rake for SDLG 838 Wheel Loader Attachment

Next: Heavy Duty Wheel Loader Pallet Fork Attachment 20T for CAT980 WA500 Construction Machinery

Detail

Heavy-Duty Hydraulic Adjustable Pallet Fork for Komatsu WA500 Series Wheel Loader

This industrial-grade hydraulic pallet fork is precision-engineered for 20-ton class Komatsu WA500-6, WA500-7 and WA500-8 wheel loaders. Featuring standard specifications of 350×255×174cm and 3500kg ultra-stable body weight, this loader attachment adopts one-piece forged alloy steel structure and full penetration reinforced welding technology, delivering outstanding load-bearing capacity, impact resistance and long-term structural stability under harsh working conditions.

Equipped with in-cab hydraulic tine spacing adjustment, the fork realizes fast and flexible spacing adjustment without manual operation, significantly improving working efficiency and construction safety. Multiple international mainstream quick change systems are optional to match different equipment and working habits. We support full customization of 1–20 ton wheel loader attachments, enabling a single loader to achieve multi-functional operation and greatly reduce equipment investment costs. Widely applicable to quarries, ports, steel yards, mining sites and large construction projects, it is a reliable heavy-load handling solution for global engineering contractors.

CORE FEATURES｜Product Highlights

Optimized for European & American Engineering Standard

Precision OEM Matching — 1:1 original mechanical data design, perfectly compatible with Komatsu WA500 full series loaders, no modification required, seamless installation and stable operation
Hydraulic Intelligent Adjustment — In-cab hydraulic control for tine spacing adjustment, saving labor costs and improving overall working efficiency
Ultra-High Strength Forged Structure — Integral alloy steel forging + multi-layer reinforced welding + professional anti-rust sandblasting paint, effectively preventing deformation and cracking during high-intensity cyclic operation
Multi Quick Change System Optional — Supports Caterpillar_ISO, Caterpillar_Fusion, EDF and JRB systems, freely adaptable to diverse equipment configurations
Full Tonnage Customization — Customizable 1–20 ton load capacity, size and structure to meet personalized working condition demands
Multi-Scenario Heavy-Duty Adaptation — Designed for global harsh engineering environments, durable and low maintenance cost

QUICK CHANGE SYSTEM｜Customizable Configuration

To meet different regional equipment standards and on-site operation habits, we provide four mainstream international quick change solutions for independent selection and customization:

Caterpillar_ISO System — Global universal standard interface, high versatility, fast disassembly and stable connection
Caterpillar_Fusion System — High-precision close-fitting structure, super load-bearing performance, suitable for high-standard heavy-load projects
EDF Quick Change System — European industrial heavy-duty standard, excellent wear resistance and impact resistance for high-frequency operation
JRB Quick Change System — North American mainstream general interface, reliable performance and strong environmental adaptability

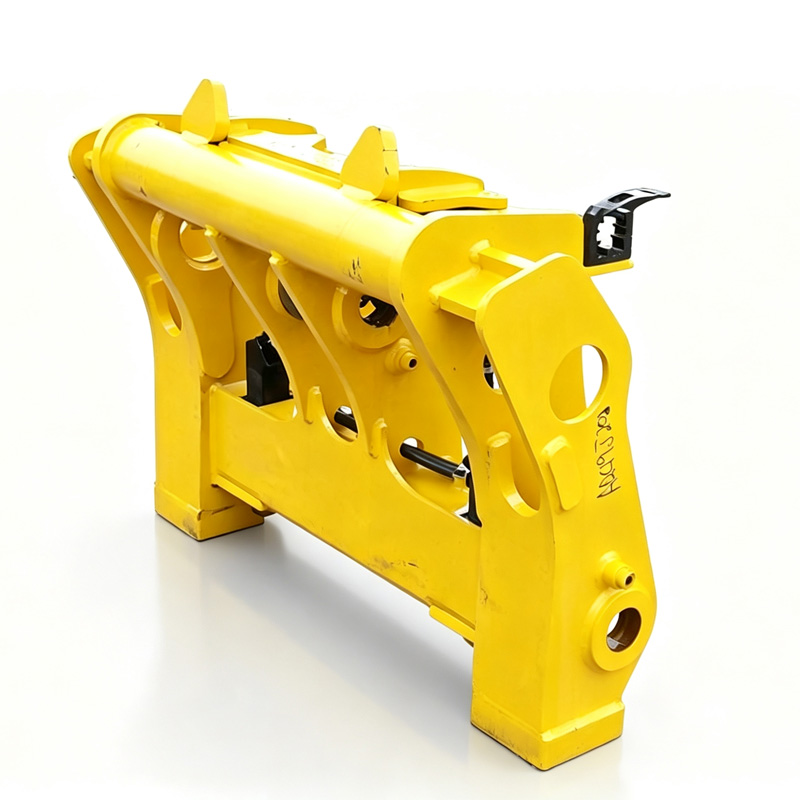

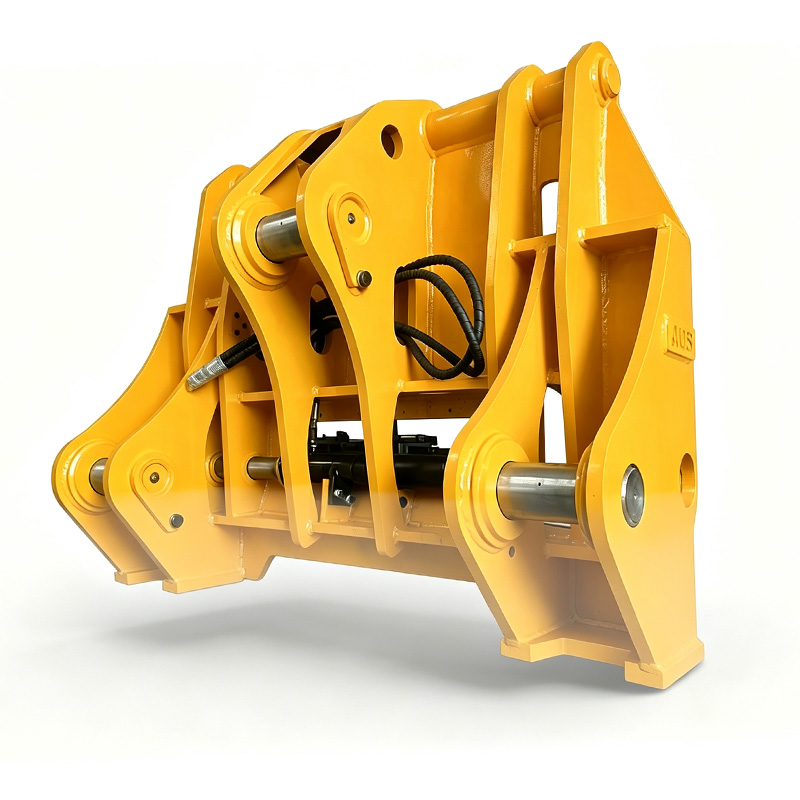

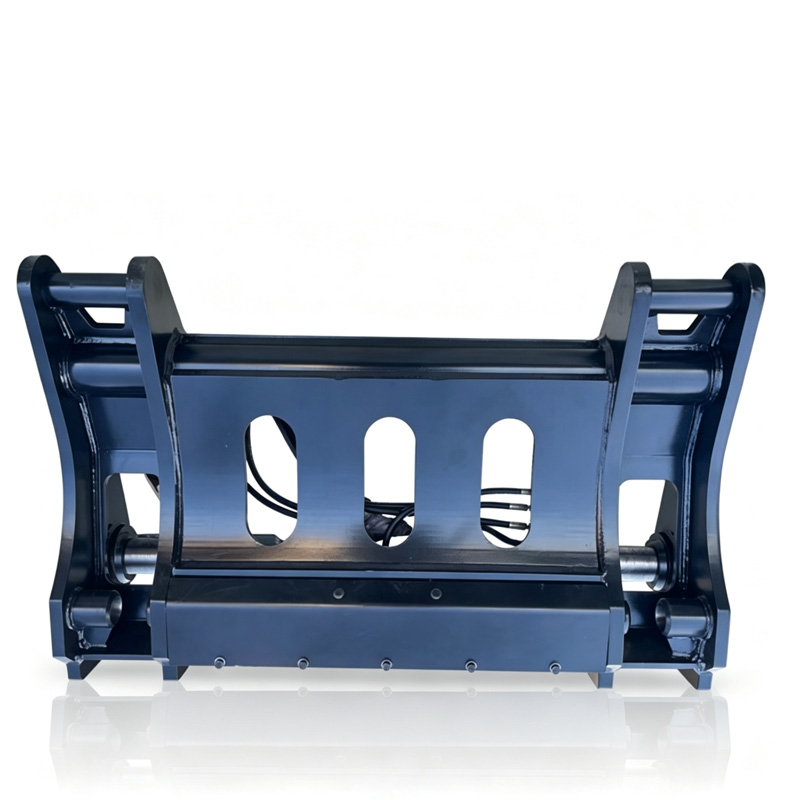

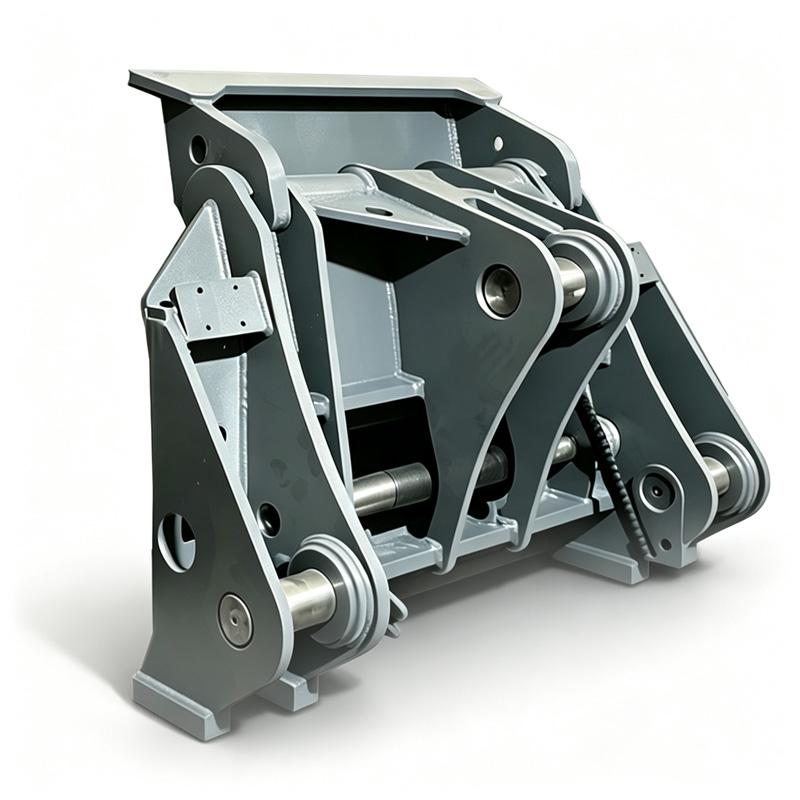

Wheel Loader Quick Coupler / Quick Change Hitch

Quick coupler for wheel loader, hydraulic & mechanical type available, fit for multiple loader models, fast switch buckets & attachments, improve site working efficiency.

We manufacture quick couplers for 1-20 ton wheel loaders of mainstream brands.

Steel grade:HB500+NM450/400+Q460+Q355
Caterpillar_ISO	Caterpillar_Fusion	EDF	JRB

TECHNICAL SPECIFICATIONS｜Parameter Data

Item	Standard Specification	Custom Range
Applicable Loader Model	Komatsu WA500-6 / WA500-7 / WA500-8	Custom for other loader brands & models
Rated Load Capacity	20 Ton	1–20 Ton customizable
Overall Dimension (L×W×H)	350×255×174 cm	Customized size available
Net Weight	3500 KG	Adjustable by customization
Adjustment Method	In-cab Hydraulic Adjustment	Hydraulic / Manual optional
Main Material	High-strength forged alloy steel	Upgrade wear-resistant steel optional
Surface Treatment	Sandblasting + Industrial anti-rust paint	Custom color & anti-corrosion process
Optional System	Multi quick change system optional	ISO / Fusion / EDF / JRB
Warranty	12 Months	Extended warranty service

APPLICATION SCENARIOS｜Working Conditions

This heavy-duty hydraulic pallet fork is developed for global large-scale engineering and logistics scenarios, fully adapting to various complex and harsh working environments:

Quarry & Mining — Heavy stone handling, ore stacking and transfer
Port & Logistics Terminal — Container cargo handling, pallet goods turnover
Steel Yard & Factory — Steel coil, profile and heavy material stacking
Construction Site — Precast parts, building materials and heavy equipment handling
Timber & Farm Industry — Large timber stacking and bulk cargo handling

MANUFACTURING STRENGTH｜Factory Advantage

We are a professional manufacturer of construction machinery attachments with 10+ years of OEM/ODM export experience, serving European, American, Australian and Southeast Asian engineering markets. The factory integrates forging, heat treatment, precision welding and automated painting, with strict full-process quality inspection and factory load testing.

All products comply with international industrial safety standards, support personalized customization of tonnage, size, color and matching system, and provide one-stop purchasing, customization and after-sales service. Stable quality, competitive factory price and reliable global after-sales support help customers maximize equipment utilization and project benefits.

FAQ｜Common Questions

Q1: Which loaders is this 20-ton pallet fork suitable for?

A: It is professionally matched with Komatsu WA500-6, WA500-7 and WA500-8 wheel loaders, and supports customized adaptation for other mainstream loader models.

Q2: Can I customize the load capacity and size?

A: Yes, we support full-range customization from 1 ton to 20 ton, including size, load capacity and structural parameters.

Q3: What quick change systems are available?

A: Four mainstream systems are optional: Caterpillar_ISO, Caterpillar_Fusion, EDF and JRB, matching global regional equipment standards.

Q4: Is the product suitable for long-term heavy-load work?

A: Adopting forged steel and reinforced welding structure, it has strong deformation resistance and durability, fully adapting to long-term high-intensity heavy-load operation.

Q5: What is your after-sales service?

A: We provide 12-month warranty and professional remote technical guidance, supporting global after-sales service.
