3CBM Light Duty Loader Bucket 750KG, High Capacity Lightweight Bucket for L120 SW305 3-5 Ton Wheel Loader

3CBM Light Duty Loader Bucket 750KG, High Capacity Lightweight Bucket for L120 SW305 3-5 Ton Wheel Loader

Ultra-light 750KG high-capacity loader bucket designed for L120 & SW305 3-5 ton light wheel loaders. Lightweight design reduces fuel consumption, custom larger volume available, ideal for aggregate and crop handling.
Parameter
Model ： L120, SW305
Rated Capacity ： 3.0 CBM
Working Design ： Optimized Light-duty Design
Bucket Weight(kg) ： 750KG (Ultra Lightweight Design)
Overall Dimension (W×D×H) ： 285*160*170cm
Steel grade ： HB500+NM450/400+Q460+Q355
Color ： Custom color available
Customization ： Bucket volume, width, paint color, logo, mounting structure customization
Product Name ： Aggregate, Grain, Crops, Sawdust, Compost, Light Bulk Materials
Custom Volume Range ： 1.5‑10 CBM
Service Support ： Light weight reduces loader fuel consumption, high loading efficiency
Compatible Quick‑Change System ： ISO / Fusion / JRB / EDF
Collection
Prev: 3.8CBM ISO Quick Change Wheel Loader Bucket for 5 Ton Loader, Fit Volvo L120 & JCB457 Wheel Loader Attachment
Next: JRB418 HD 4CBM Heavy Duty Loader Bucket | Premium Wheel Loader Attachments
Detail

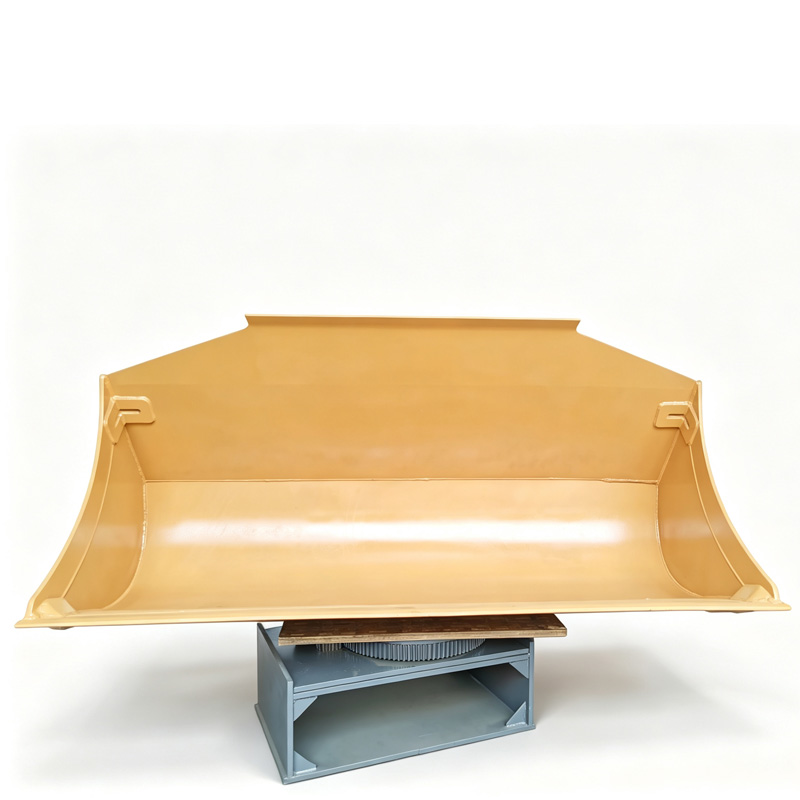

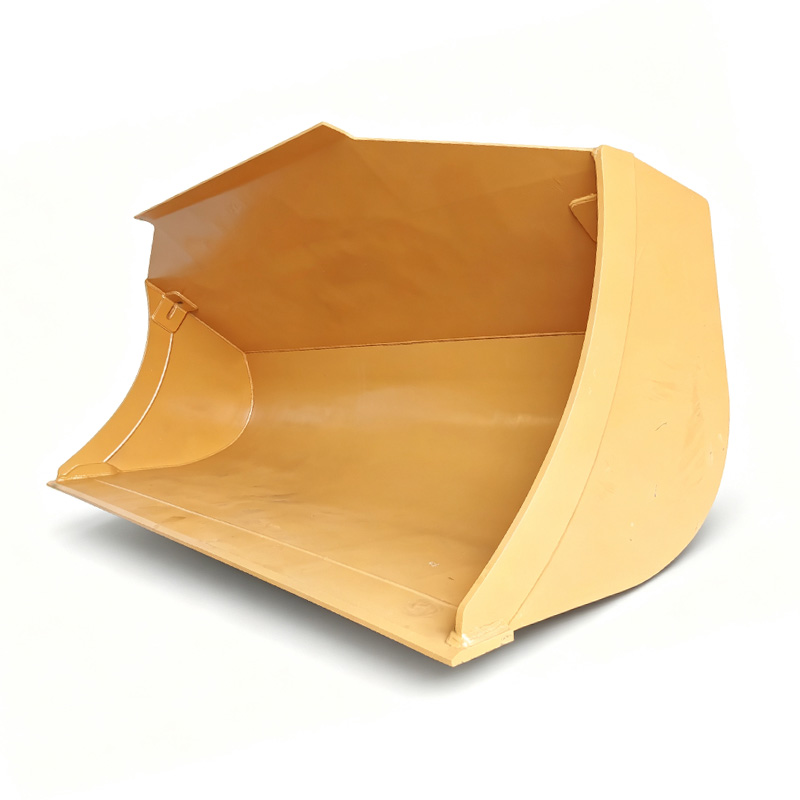

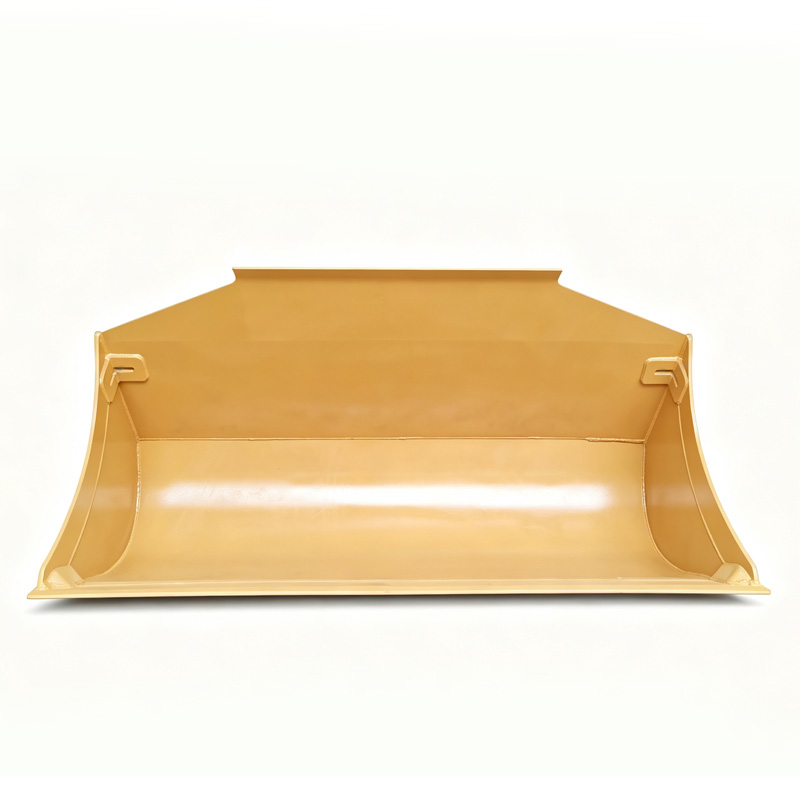

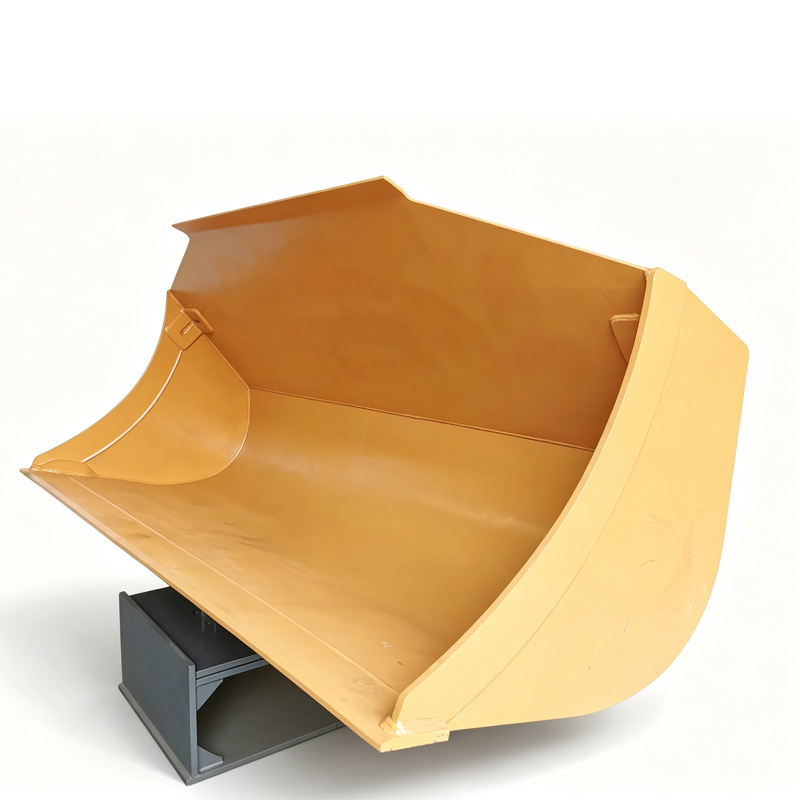

This light-duty large-volume loader bucket with only 750KG self-weight, is specially designed for 3 ton, 4 ton, 5 ton class wheel loaders, compatible with L120, SW305 and other equivalent loader models. Standard struck capacity reaches 3 CBM. Optimized for light-density bulk materials, widely used for aggregate, grain, crops, compost, sawdust and other light-weight material loading & transportation. The flat smooth cutting edge prevents scratching and damaging ground surfaces during grading and cleaning work. We can also custom-manufacture larger-capacity light-duty buckets upon client requirements to meet higher volume handling demands.

Core Advantages:

  • Ultra-Light-Weight Construction – Only 750KG

Optimized thin-but-strong bucket body, net weight only 750KG for 3CBM version. Low dead weight leaves more machine lifting capacity for light bulk goods, improves payload and working efficiency for farm and stockyard. Larger-capacity light-duty buckets are available for custom order.

  • Large Volume Performance

Standard 3CBM internal volume, we support custom capacity range from 2.5CBM up to larger-size light-duty buckets. Perfect for high-throughput handling of low-density crops, grain and light aggregate.

  • Smooth Flat Cutting Edge

Precision-machined flat smooth blade edge. When levelling, back-dragging or site cleaning, it will not scratch asphalt, concrete or yard ground. Ideal for farm yards, storage yards and sites requiring ground protection. Bolt-on cutting edge for easy replacement & low maintenance cost.

  • Optimized Inner Geometry

Smooth curved inner surface, less material sticking. Crops, grain and aggregate fill and discharge completely, minimize residual material inside bucket.

  • Broad Machine Compatibility & Custom Service

Fit for 3-5 ton wheel loaders, compatible with L120, SW305 and other mainstream brands. Mounting options: pin-on / quick-change bracket. Besides standard 2.5-6CBM range, we accept custom project for extra larger light-duty bucket volume, bucket width, paint color and logo marking according to your working condition.

  • Reliable Welding Craft

Reinforced stress points, durable for continuous light-material loading work, cost-effective for agricultural and stockpile operations.

Wheel Loader Quick Coupler / Quick Change Hitch

Quick coupler for wheel loader, hydraulic & mechanical type available, fit for multiple loader models, fast switch buckets & attachments, improve site working efficiency. We manufacture quick couplers for 1-20 ton wheel loaders of mainstream brands.

Steel grade:HB500+NM450/400+Q460+Q355
Caterpillar_ISO Caterpillar_Fusion EDF JRB
Light Duty Loader Bucket Large Bucket 3CBM 3.5CBM 4.0CBM 3.0m³ 3.5m³ 3 Ton 4 Ton 5 Ton Wheel Loader Bucket for L120 L120 SW305 Light Duty Loader Bucket Large Bucket 3CBM 3.5CBM 4.0CBM 3.0m³ 3.5m³ 3 Ton 4 Ton 5 Ton Wheel Loader Bucket for L120 L120 SW305 Light Duty Loader Bucket Large Bucket 3CBM 3.5CBM 4.0CBM 3.0m³ 3.5m³ 3 Ton 4 Ton 5 Ton Wheel Loader Bucket for L120 L120 SW305Light Duty Loader Bucket Large Bucket 3CBM 3.5CBM 4.0CBM 3.0m³ 3.5m³ 3 Ton 4 Ton 5 Ton Wheel Loader Bucket for L120 L120 SW305

Technical Specification

ItemParameter
Product NameLight Duty Large Volume Loader Bucket / Wheel Loader Attachment
Standard Capacity3 CBM (Struck)
Net Weight750 KG
Optional Standard Capacity2.5CBM / 3CBM / 4CBM / 5CBM / 6CBM
Custom ServiceCustom larger-capacity light-duty bucket available
Fit Machine3 Ton, 4 Ton, 5 Ton Wheel Loader, L120, SW305
Cutting EdgeFlat smooth bolt-on cutting edge (ground-friendly)
Mounting TypePin-on / Quick Change (Customizable)
ApplicationAggregate, grain, crops, sawdust, compost bulk loading & transportation

Application Scenarios

  • Agricultural farm: Crops, grain, straw bulk loading & transport

  • Aggregate yard: Light aggregate, sand and fine gravel handling

  • Recycling yard: Sawdust, compost, organic stockpile work

  • Yard maintenance: Site levelling and ground cleaning

Our Factory Strength

  1. Factory direct supply for wheel loader attachments, strict quality inspection before shipment.

  2. Strong custom capability: produce standard and extra larger-capacity light-duty loader buckets, different mounting bracket & bucket width for 3-25 ton wheel loaders.

  3. Drawings confirmation before production.

  4. Mixed container order is acceptable for attachments and spare parts.

Packing & Shipment

  • Packing: Nude packing with steel frame reinforcement for sea transportation

  • Shipment: 20GP /40HQ container or bulk vessel

  • Trade terms: FOB, CFR, CIF available
